• A ball spring (5#) type check valve is typically installed at the highest point in a solar pool heating system. By allowing air to enter the pool solar panels, it aids in gravity drainage of solar pool collectors and piping.
• Internal components feature a Viton o-ring, glass-reinforced ball, and 5# stainless steel spring.

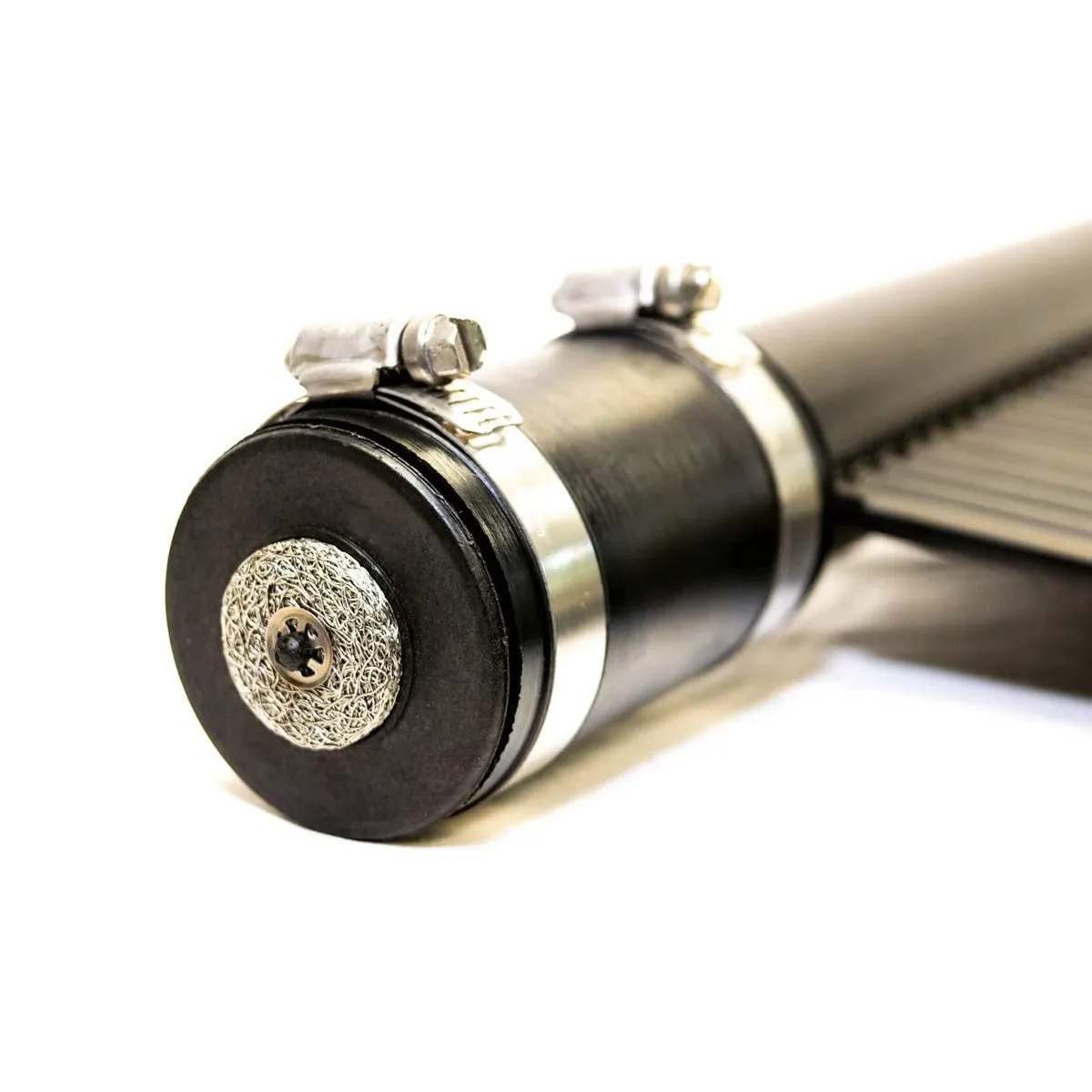

• Typically installed using a rubber hose type connector and hose clamps, which are sold separately.

Compatibility: Will work with any solar pool heating system that has round 1.5” or 2" I.D. header manifolds and makes attachments with rubber hose type connectors.

Measurements & Sizing

1.9" (1-7/8") O.D. Vacuum Relief Valve

• For solar pool panels with 1-1/2″ headers (1.5″ manifold I.D. / 1.9″ manifold O.D.)
• Fits rubber connector hoses with 1.9″ (1-7/8″) I.D.

2.375" (2-3/8") O.D. Vacuum Relief Valve

• For solar pool panels with 2″ headers (2″ manifold I.D. / 2.375″ manifold O.D.)
• Fits rubber connector hoses with 2.375″ (2-3/8″) I.D.

PRODUCT DATA

Manufacturer: Solar Pool Supply
MPN: 10003
10003-1 (1.5" I.D. Header)
10003-2 (2" I.D. Header)
