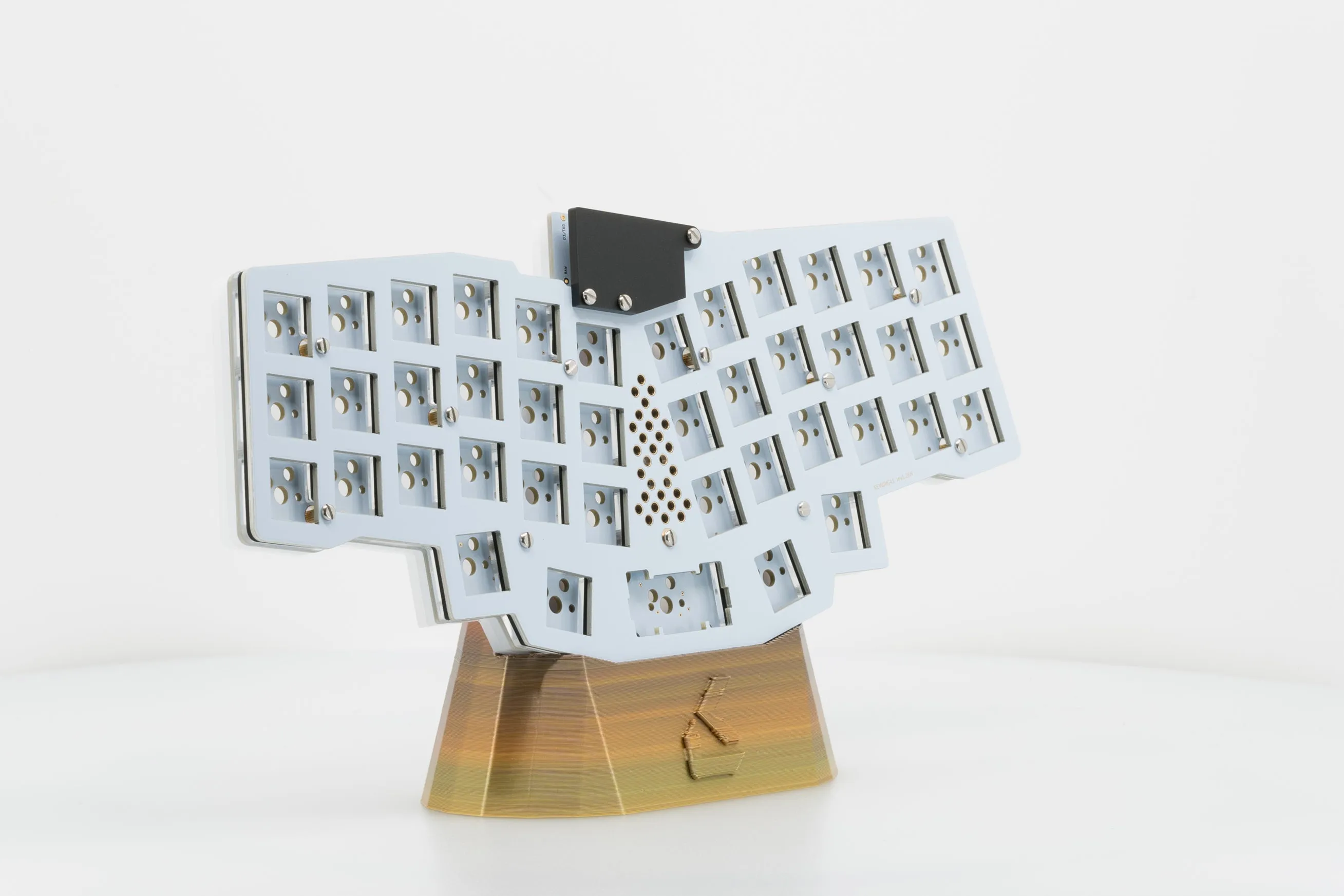

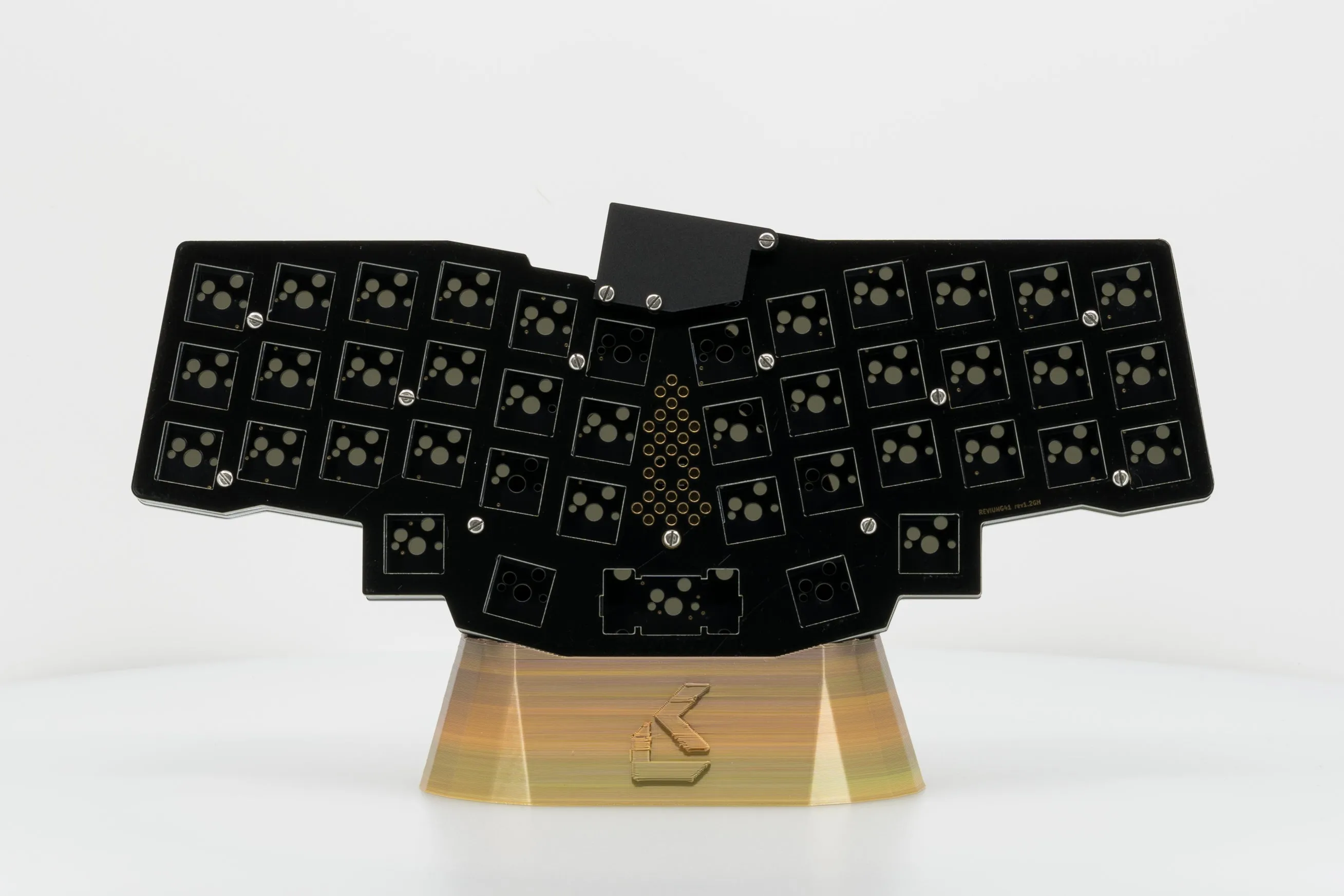

The Reviung41 keyboard is a 41 key layout featuring a 3x12 grid with 5 additional thumb keys. The PCB has footprints for Kailh MX Hotswap sockets and allows for the use of a 2u stabilizer for the center key in the thumb cluster. The Reviung41 also includes support for RGB LEDs. There are 10 downward facing LEDs for underglow support and a single upward facing LED for additional accent lighting.
Each kit includes upper and lower middle layers that result in a very solid build. The upper layers consist of 2mm EVA foam and 1.5mm clear acrylic. The lower middle layer is made from 3mm frosted acrylic. The frosted material diffuses RGB lighting to enhance the effect.
The Reviung41 keyboard was designed by keyboard designer . Additional information about the Reviung41 keyboard along with the source files from the designer can be found on the . QMK key mappings and firmware can be found .
Please note that this kit requires soldering and does not include switches, keycaps, and 2u stabilizer.
Standard Cherry MX PCB mount stabilizers have been tested and work great with this kit any other type of stabilizer that is potentially larger than a non screw in standard cherry mx pcb mount stabilizer may or may not require modifications to work with this kit.
This can be used for assembly.
| 1 | PCB |
| 1 | Reset Switch |
| 41 | Surface Mount Diodes |
| 41 | Kailh MX Sockets |
| 11 | RGB LEDs |
| 1 | Black Acrylic MCU Cover |

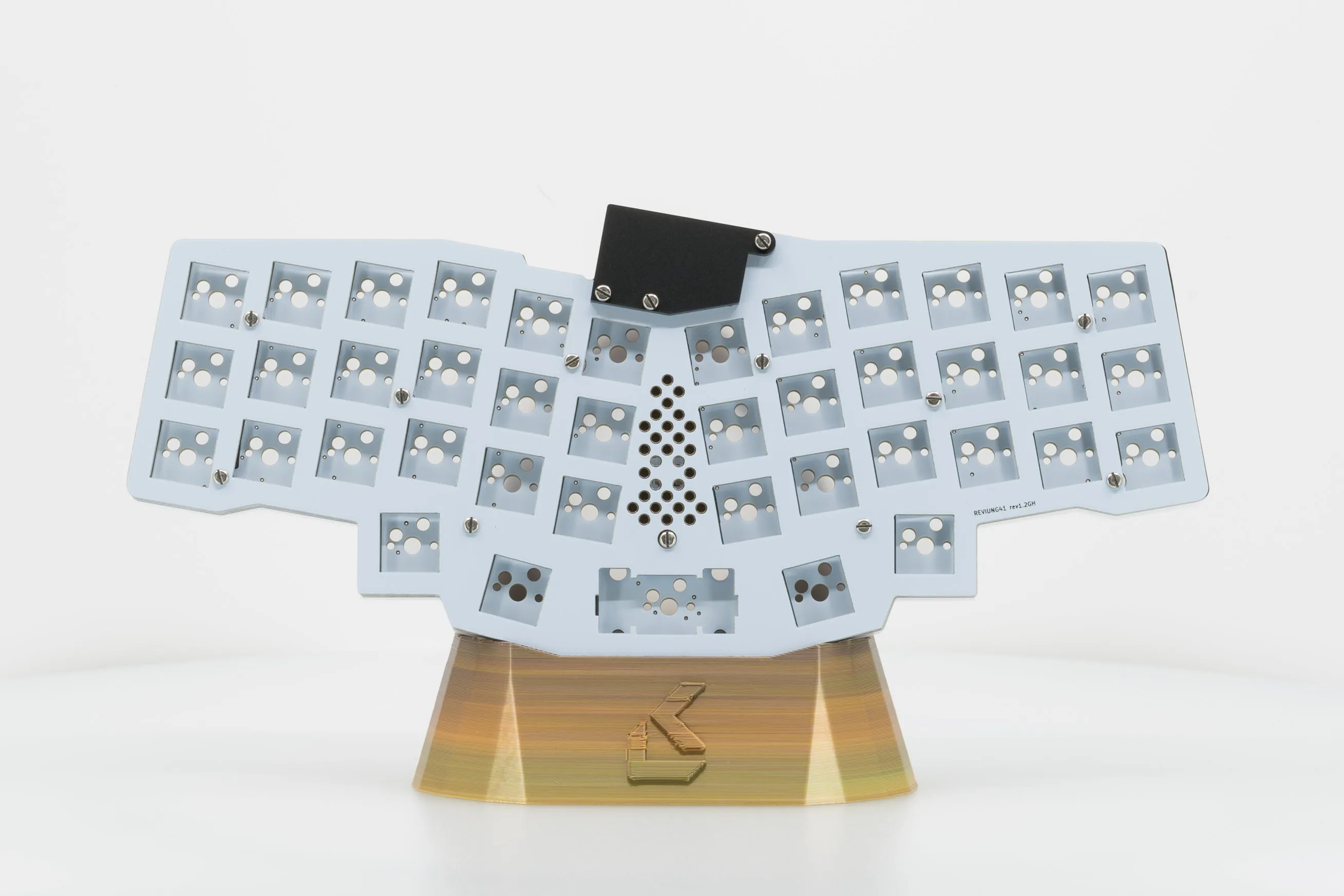

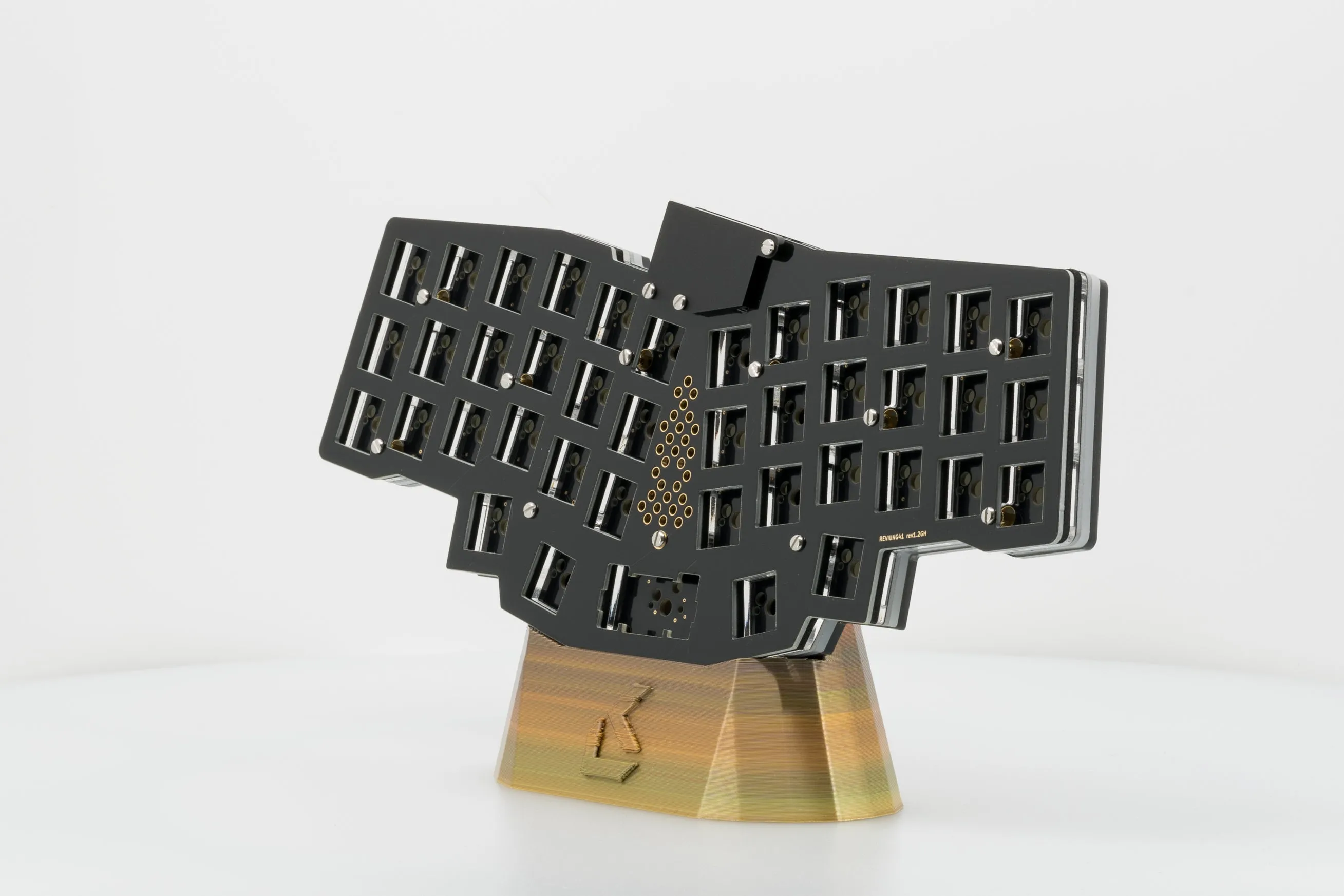

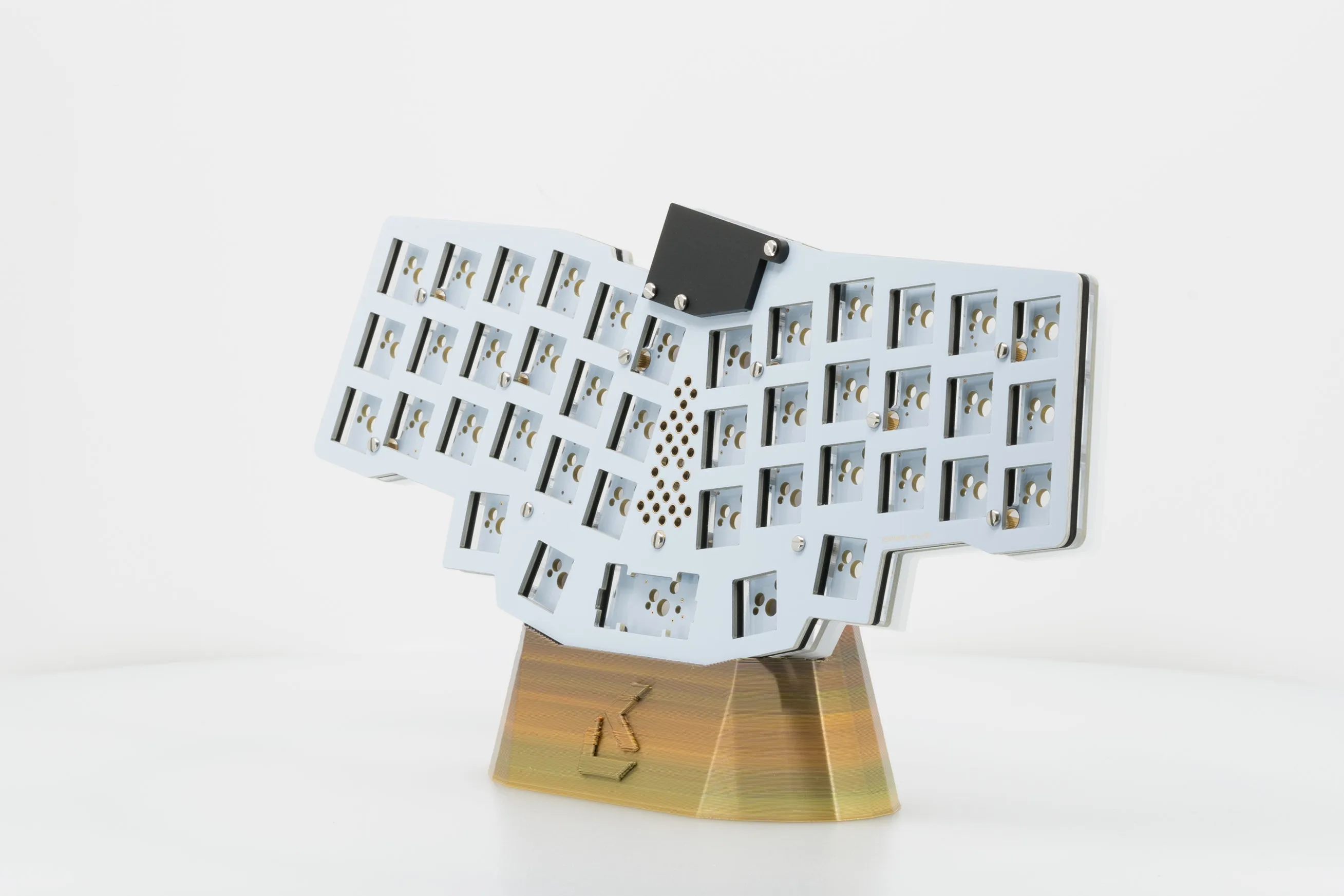

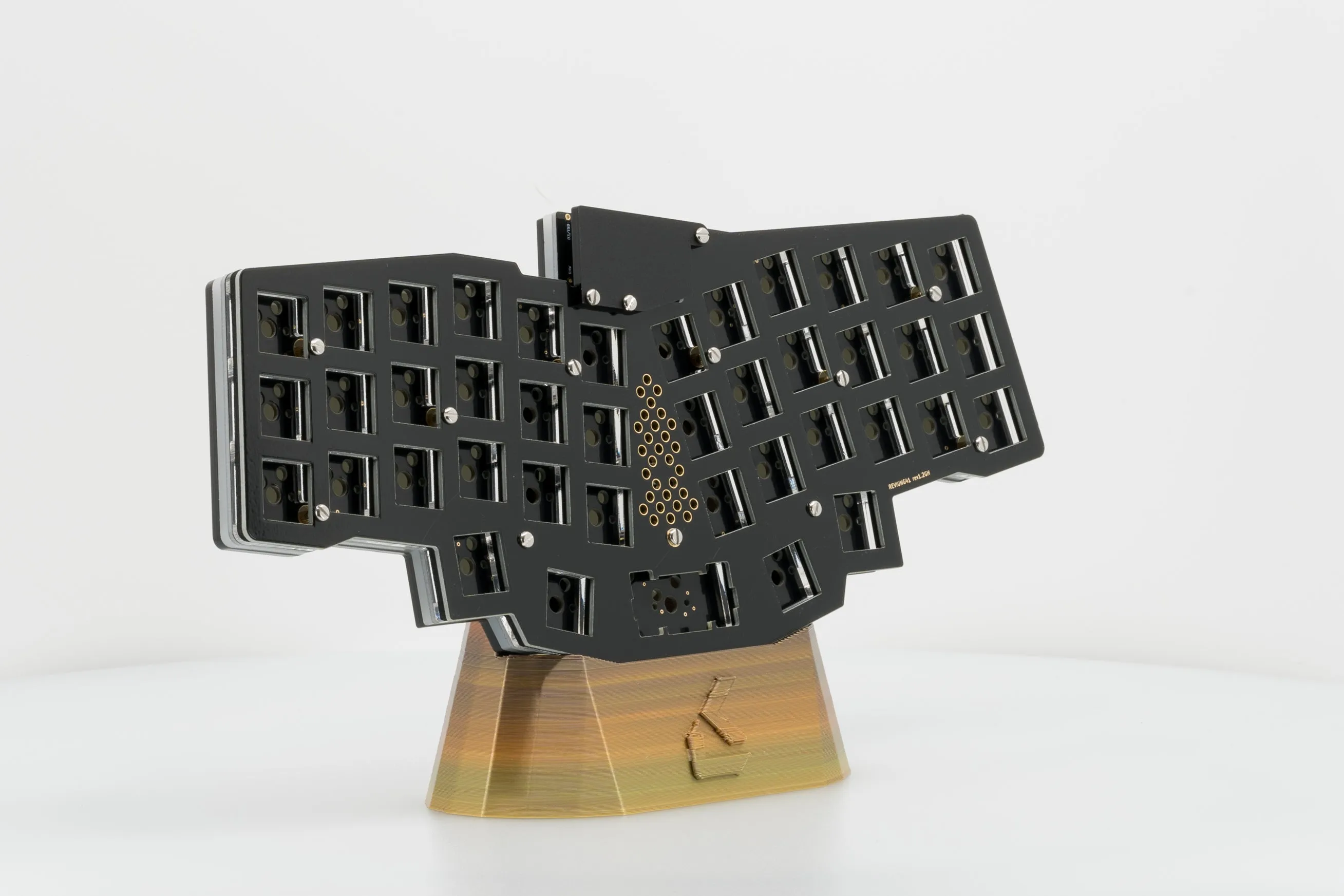

| 1 | Black FR4 Switch Plate |
| 1 | 1.5mm Clear Acrylic Upper Middle Plate |
| 1 | 2mm EVA Foam Upper Middle Layer |
| 1 | 3mm Frosted Acrylic Lower Middle Plate |

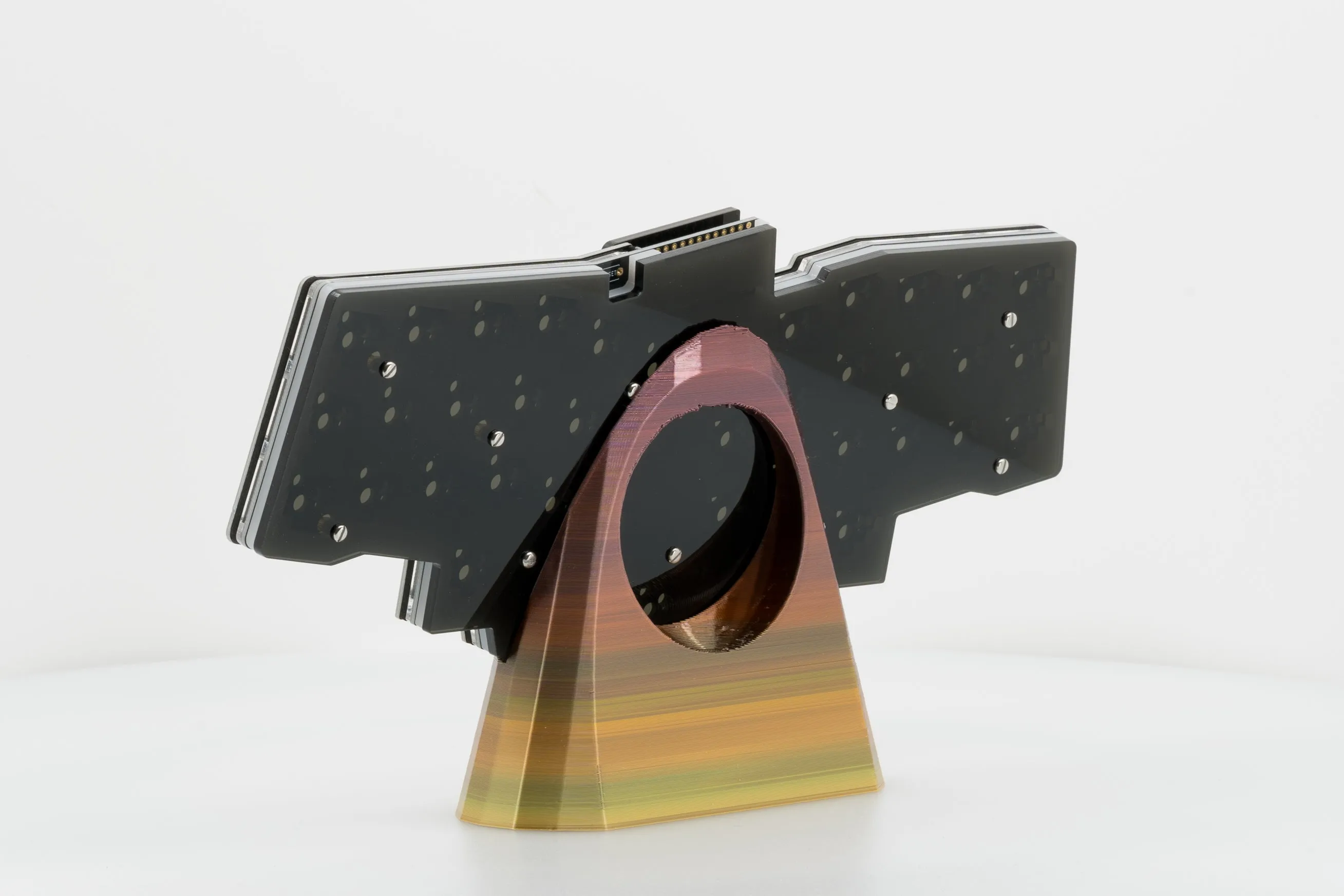

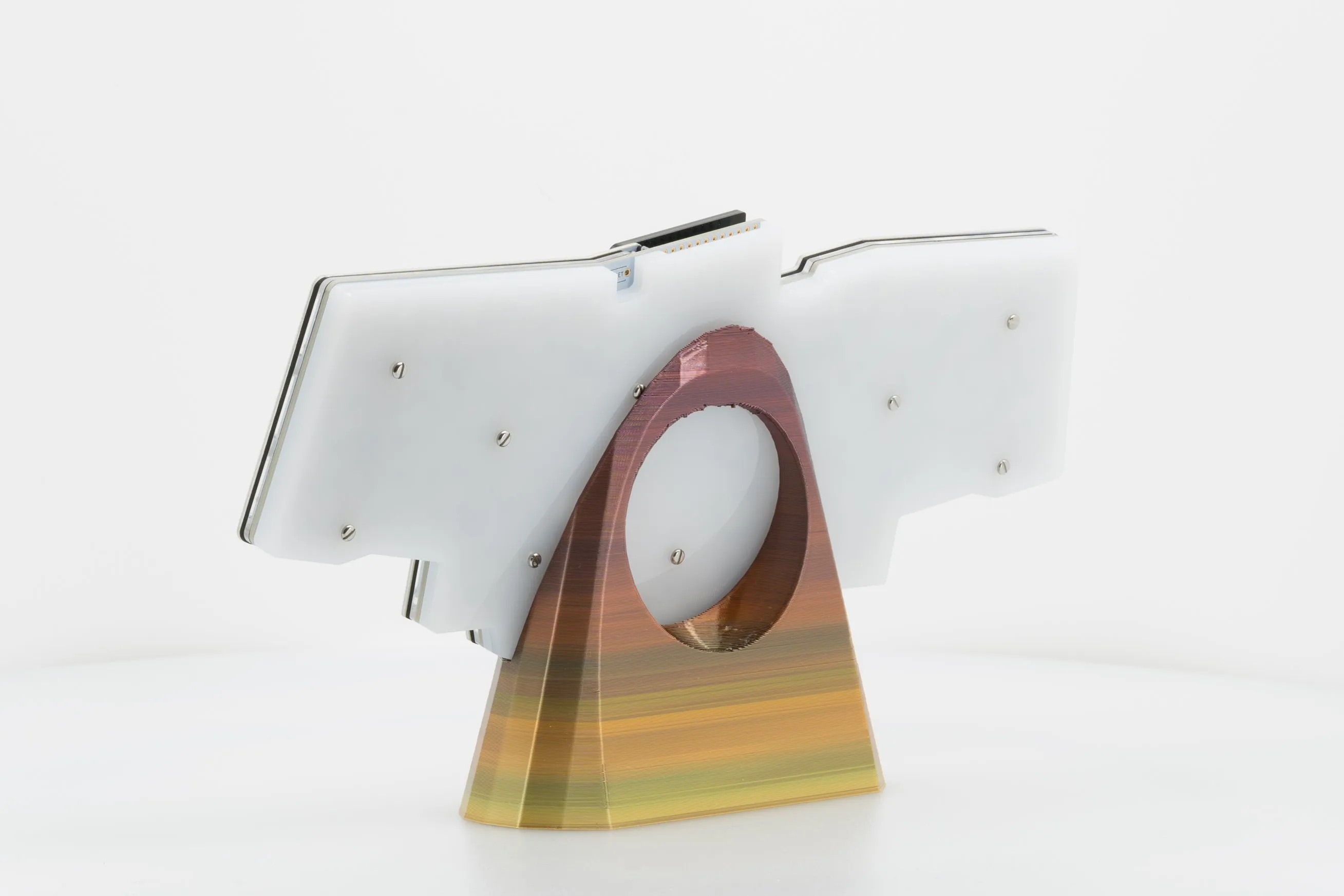

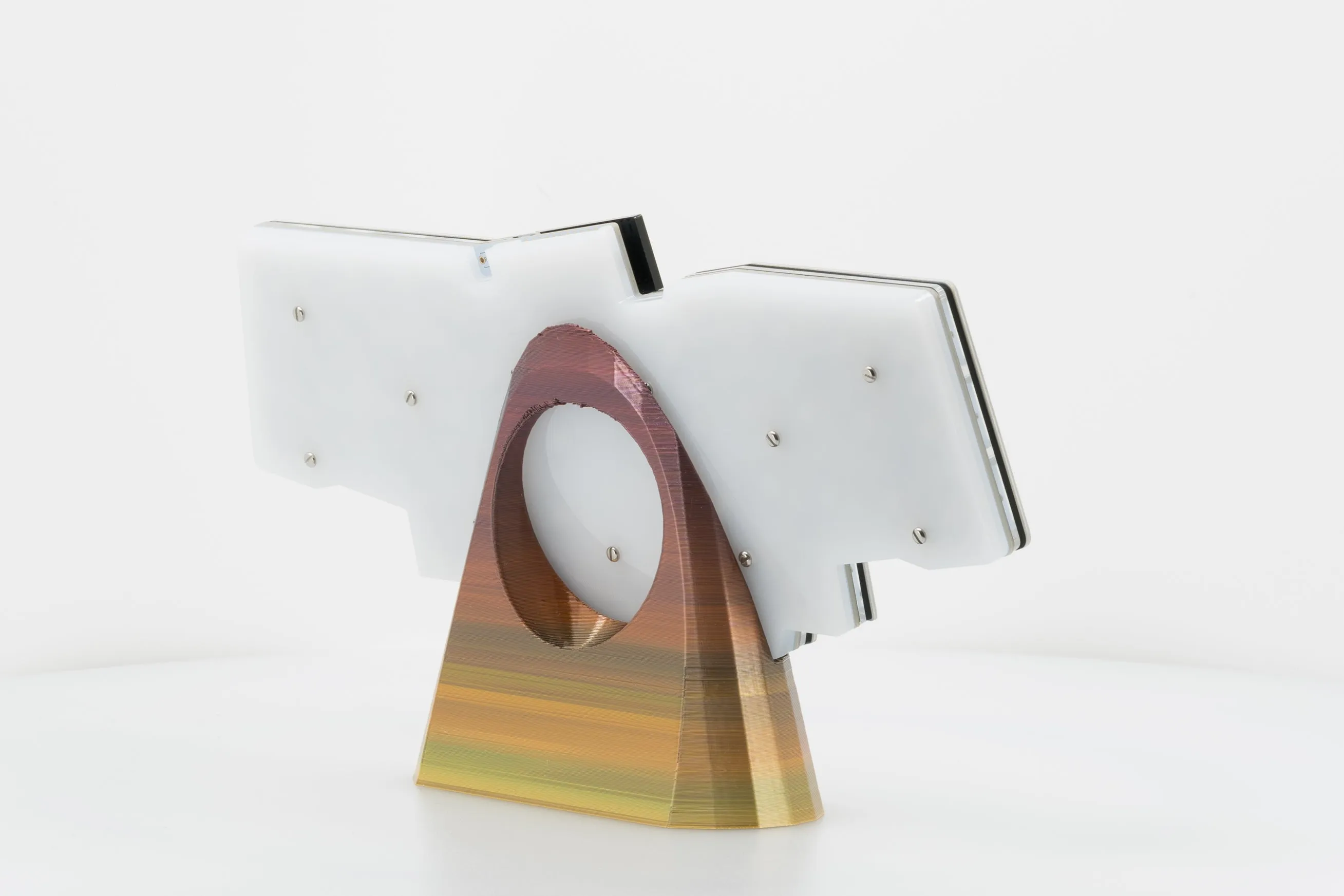

| 1 | 3mm Acrylic Bottom Plate |
| 1 | Hardware Kit |
Additional Notes
The following components are needed in order to have a completed keyboard.
| 1 | Pro Micro or equivalent |
| 41 | Cherry MX switches |
| 41 | Keycaps |
| 1 | 2u Stabilizer (Optional) |
| 1 | USB Cable |
