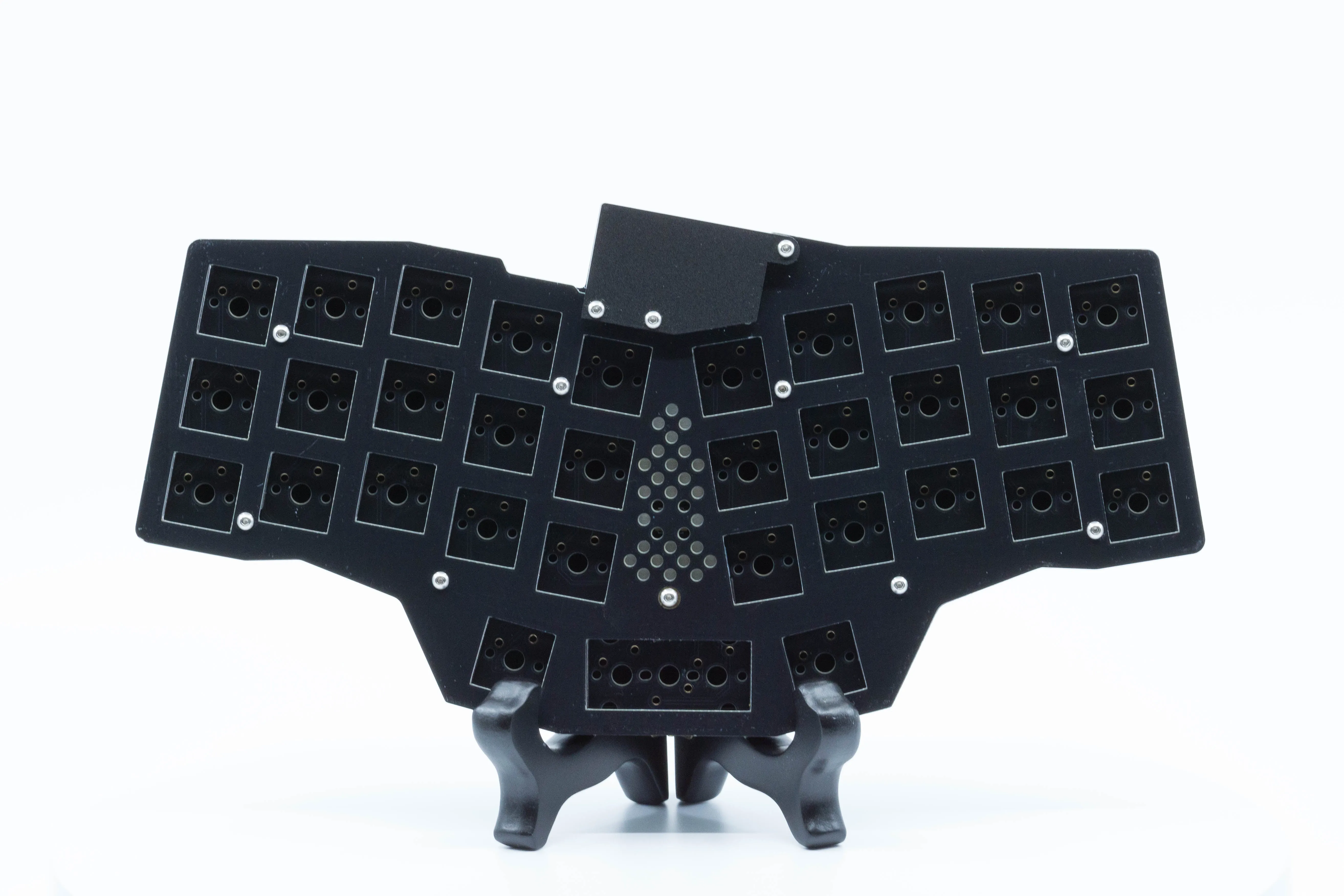

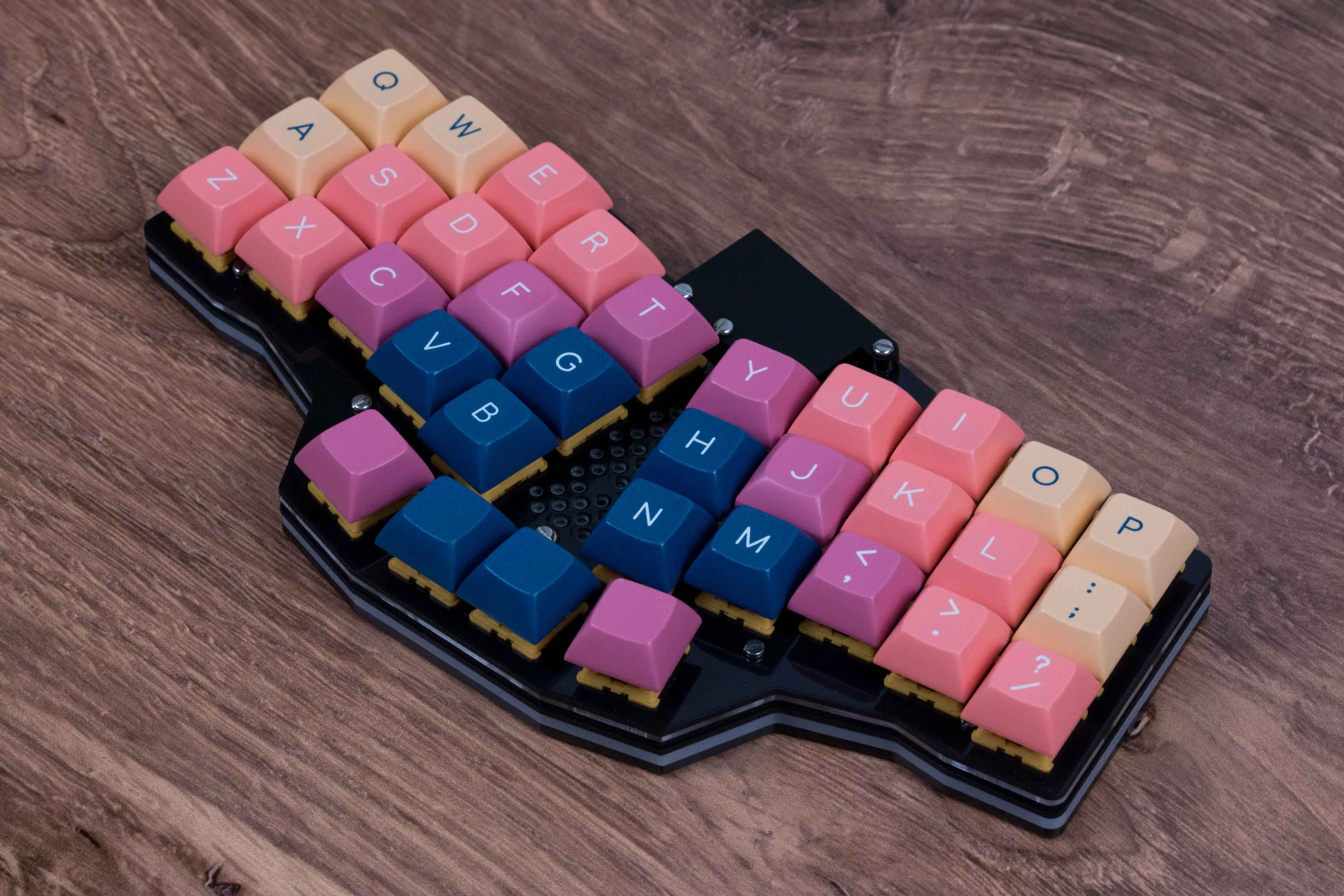

The Reviung34 keyboard is a 34 key layout featuring a 3x10 grid. The thumb cluster layout allows for a single 2u option or two 1u keys. It also features an addtitional thumb key on either side of the center key. The Reviung34 includes support for RGB LEDs. There are 8 downward facing LEDs for underglow support and a single upward facing LED for additional accent lighting.
Each kit includes upper and lower middle layers that result in a very solid build. The upper layers consist of 2mm EVA foam and 1.5mm clear acrylic. The lower middle layer is made from 3mm frosted acrylic. The frosted material diffuses RGB lighting to enhance the effect.
The Reviung34 keyboard was designed by keyboard designer . Additional information about the Reviung34 keyboard along with the source files from the designer can be found on the . QMK key mappings and firmware can be found .
Please note that this kit requires soldering and does not include switches, keycaps, or 2u stabilizer.
This can be used for assembly.
| 1 | PCB |
| 1 | Reset Switch |
| 34 | Surface Mount Diodes |
| 9 | RGB LEDs |
| 1 | Black Acrylic MCU Cover |
| 1 | Black FR4 Switch Plate |
| 1 | 1.5mm Clear Acrylic Upper Middle Plate |
| 1 | 2mm EVA Foam Upper Middle Layer |
| 1 | 3mm Frosted Acrylic Lower Middle Plate |
| 1 | 3mm Acrylic Bottom Plate |
| 1 | Hardware Kit |
Additional Notes
The following components are needed in order to have a completed keyboard.
| 1 | Pro Micro or equivalent |
| 34 | Cherry MX switches |
| 34 | Keycaps |
| 1 | 2u Stabilizer (Optional) |
| 1 | USB Cable |
