Product Details
＋
PRODUCT DETAILS
Description

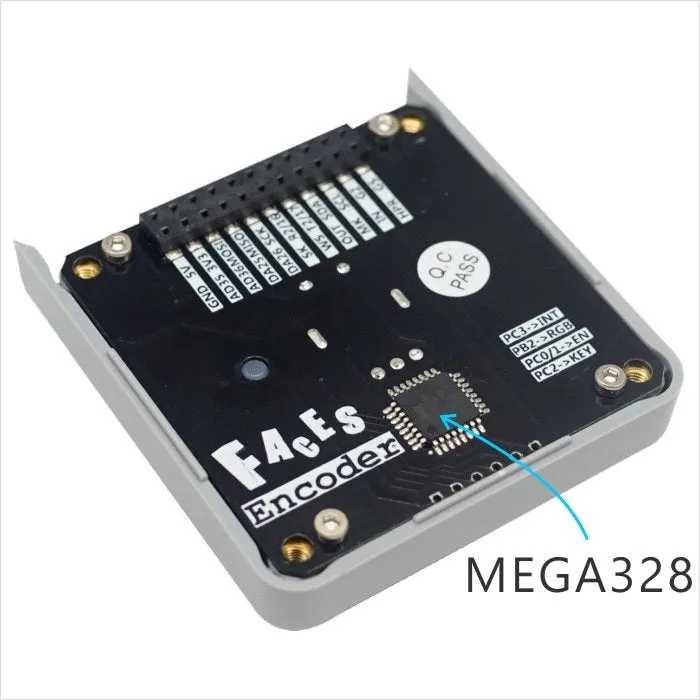

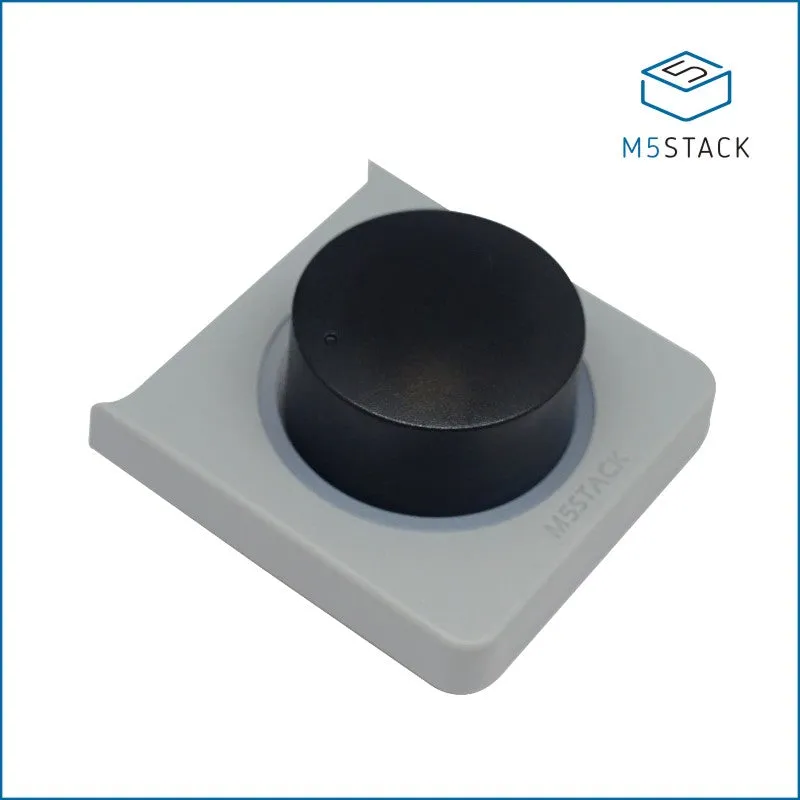

ENCODER is compatible with FACE Kit. You can have it replace the key-card panel inside the FACE kit. It is designed for rotary encoder control, integrated Mega328 microprocessor inside and LEDs around the encoder.
The series communication protocol between M5 core and ENCODER is I2C (The default I2c address is: 0x5E)
This product is EOL now.
Product Features
- 12 RGB Led
- I2C communication
- Simple API for programming
- Mega328 inside
- Encoder detection
Include
- 1x M5Stack ENCODER Module
Specification
| Resources | Parameter |
|---|---|
| RGB LED | x12 |
| Net weight | 27g |
| Gross weight | 47g |
| Product Size | 58.2*54.2*28mm |
| Package Size | 95*65*25mm |
| Material | Plastic(PC) |
