Product Details
＋

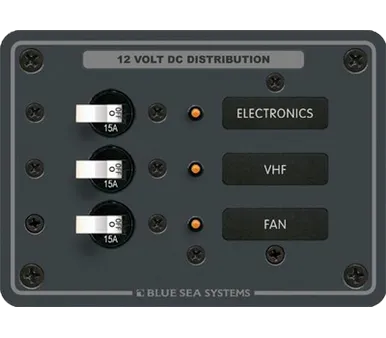

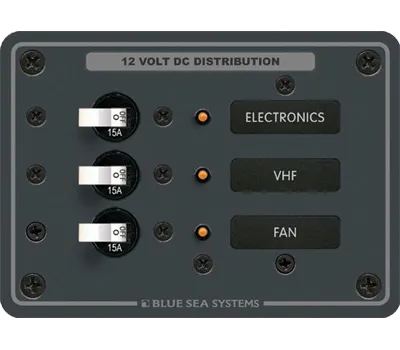

Blue Sea Systems 8025 panel with (3) 15A single pole breakers for DC systems. White toggles.
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Panel Labels
- Over 500 individual labels available
Specifications:
| Positions | 3 |
| Installed Single Pole Circuit Breakers | 3 (15A) |
| Voltage | 12 or 24 Volts DC |
| Width in" (mm) | 5.25 (133.35) |
| Height in" (mm) | 3.75 (95.25) |
| Weight Lb (Kg) | 1.15 (0.52) |
